Mos Toll Tolt

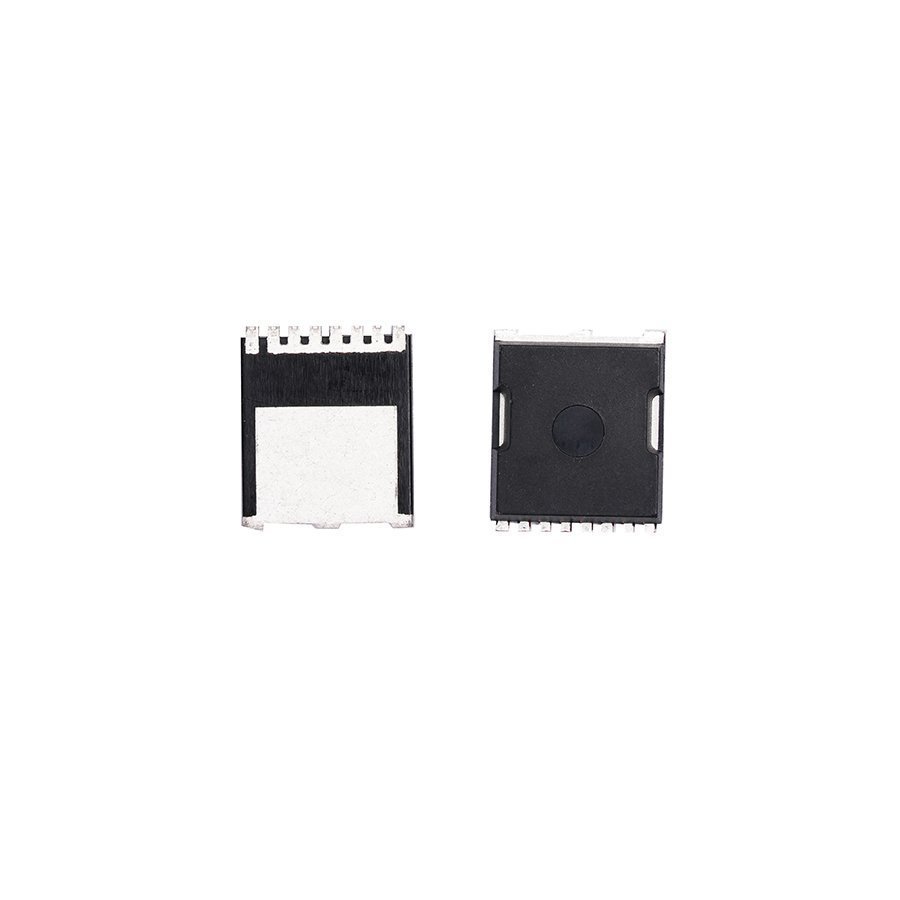

MOT7130T
Suitable for high-current switching, motor drives, battery protection, switch-mode power supplies and DC power conversion.
VDss[V](min)
145
ID[A](25℃)
263
VGS(th)[V](max)
4
Rds(on) [ mohm] at Vgs=10V（TYP)
2.6
Engineering support
Built for faster component evaluation and design-in decisions
Verified parametersKey electrical data at a glance
Design-in resourcesDatasheet and cross-reference support
Application supportEngineering contact available below
Engineering resources
Product information
Specifications, documents and sourcing support for MOT7130T.
Technical specifications
Parametric data for product selection and design review.
- Supplier Device Package
- TOLL-8
- VDss[V](min)
- 145
- ID[A](25℃)
- 263
- VGS(th)[V](max)
- 4
- Rds(on) [ mohm] at Vgs=10V（TYP)
- 2.6
- Rds(on) [ mohm] at Vgs=10V（MAX)
- 3.8
- Qg [nC] at 10V Typ
- 125
- Qgs [nC] Typ
- 46
- Qgd [nC] Typ
- 32
MOT7130T
Review electrical characteristics, package drawings and test conditions.
Overview & applications
Product positioning and recommended use cases.
MOSFET N-CH 263V 145A 2.6 TOLL-8
MOT7130T is a power N-channel MOSFET in TOLL-8, rated at 145 V and 263 A. Low on-resistance and fast switching help reduce losses in high-current, high-density power designs.
