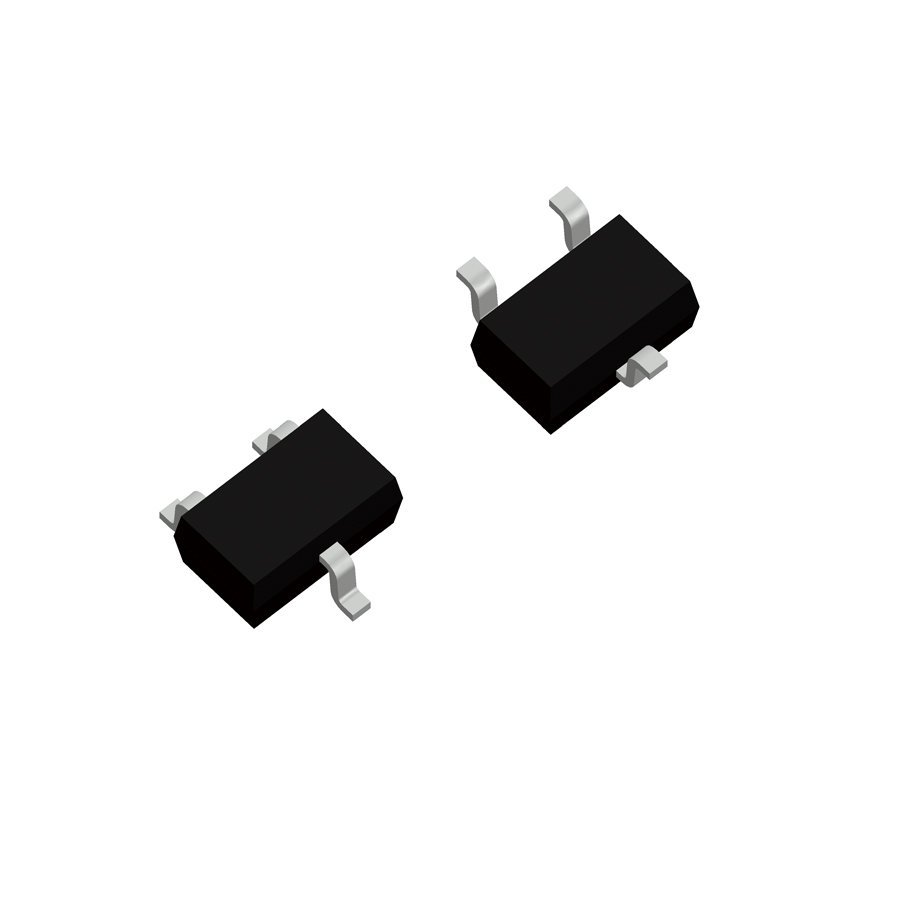

S9014W
It is widely used in various switching power supplies, chargers, adapters, smart phones, tablet computers, smart sensors, car radios, car anti-theft systems and other equipment.
Product information
Specifications, documents and sourcing support for S9014W.
Technical specifications
Parametric data for product selection and design review.
- Cargo Status
- Active
- Supplier Device Package
- SOT-323
- IC(mA)
- 100
- PC(mW)
- 200
- BVCBO(V)
- 50
- BVCEO(V)
- 45
- BVEB(V)
- 5
Overview & applications
Product positioning and recommended use cases.
TRANS 200mW 100mA 45V SOT-323
The S9014W has high DC current gain and adopts a surface mount package with a small size, which is easy to arrange and solder on various circuit boards.
Cross reference
Common market parts that may be evaluated against this MOT device.
| Manufacturer | Market part number | MOT part number |
|---|---|---|
| onsemi | S9014W | S9014W |
| Nexperia | S9014W | S9014W |
| Diodes Inc. | S9014W | S9014W |
| ROHM | S9014W | S9014W |
| YAGEO（国巨） | S9014W | S9014W |
| 扬杰科技（YJ） | S9014W | S9014W |
| 华润微（CRMC） | S9014W | S9014W |
| 长电科技（JCET） | S9014W | S9014W |
| 中微半导体（ZMSC） | S9014W | S9014W |
| 苏州固锝（ARC） | S9014W | S9014W |
Cross references are a starting point for evaluation. Confirm electrical and package compatibility in the datasheets before design-in.
