SD103AWS
Suitable for high-speed switching, signal detection, clamping, polarity protection and low-current rectification.
Product information
Specifications, documents and sourcing support for SD103AWS.
Technical specifications
Parametric data for product selection and design review.
- Cargo Status
- Active
- Supplier Device Package
- SOD-323
- IO(A)
- 0.35
- VRRM(V)
- 40
- IFSM(A)
- 2
- VF(V)
- 0.6
- @IF(A)
- 0.2
- IR<(uA)
- 1
- @VR(V)
- 25
SD103AWS Datasheet
Review electrical characteristics, package drawings and test conditions.
Overview & applications
Product positioning and recommended use cases.
DIODE 40V 0.35A 0.6V 1uA

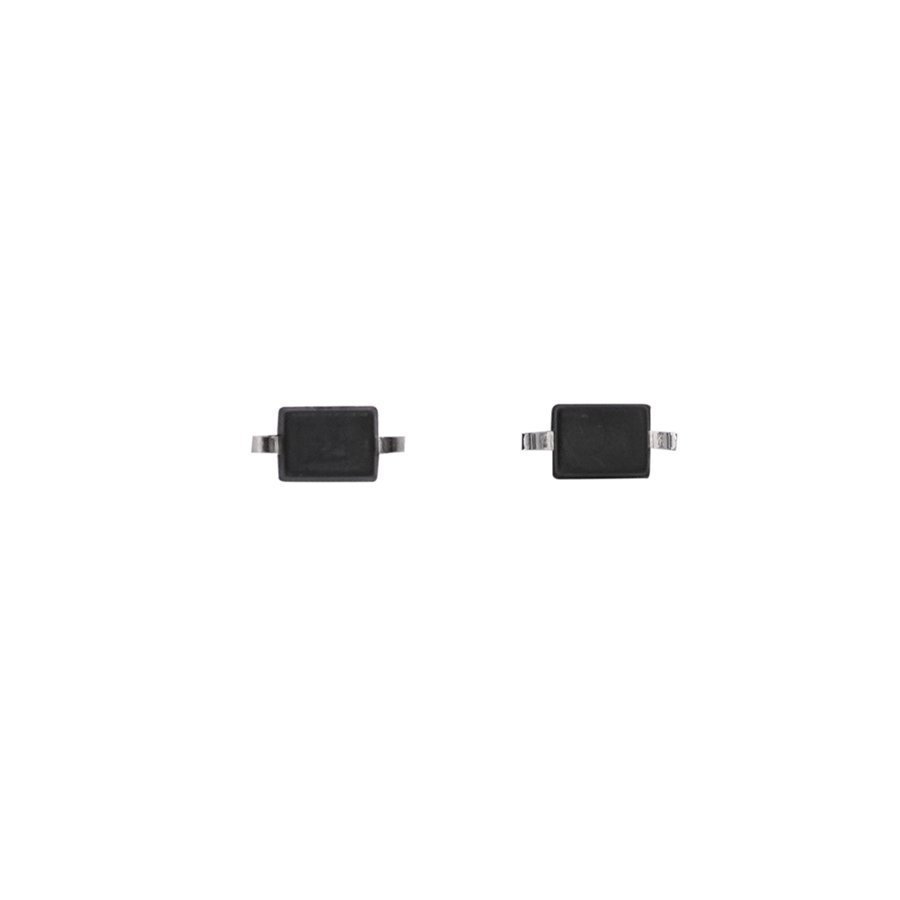

SD103AWS is a small-signal Schottky diode in SOD-323, rated at 40 V and 0.35 A. Low forward voltage, low capacitance and negligible recovery time support fast, efficient signal handling.
Cross reference
Common market parts that may be evaluated against this MOT device.
| Manufacturer | Market part number | MOT part number |
|---|---|---|
| Vishay | SD103AWS | SD103AWS |
| Diodes Inc. | SD103AWS | SD103AWS |
| Micro Commercial Components | SD103AWS | SD103AWS |
| Taiwan Semiconductor | SD103AWS | SD103AWS |
| STMicroelectronics | SD103AWS | SD103AWS |
| ROHM | RB160MM-40 | SD103AWS |
| 扬杰科技（YJ） | SD103AWS | SD103AWS |
| 长电科技（JCET） | SD103AWS | SD103AWS |
| 华润微（CRMC） | SD103AWS | SD103AWS |
Cross references are a starting point for evaluation. Confirm electrical and package compatibility in the datasheets before design-in.
