Mos Toll Tolt

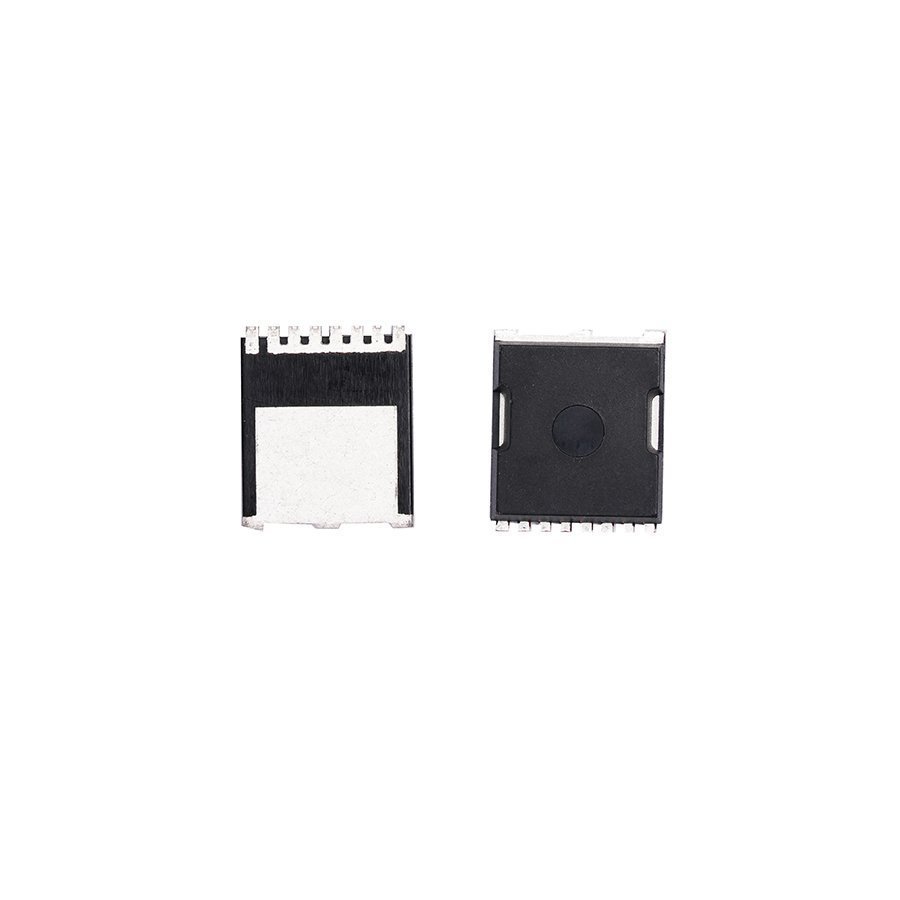

MOT1127T4
Suitable for high-current switching, motor drives, battery protection, switch-mode power supplies and DC power conversion.
VDss[V](min)
110
ID[A](25℃)
250
VGS(th)[V](max)
4
Rds(on) [ mohm] at Vgs=10V（TYP)
2.4
Engineering support
Built for faster component evaluation and design-in decisions
Verified parametersKey electrical data at a glance
Design-in resourcesDatasheet and cross-reference support
Application supportEngineering contact available below
Engineering resources
Product information
Specifications, documents and sourcing support for MOT1127T4.
Technical specifications
Parametric data for product selection and design review.
- Supplier Device Package
- TOLT
- VDss[V](min)
- 110
- ID[A](25℃)
- 250
- VGS(th)[V](max)
- 4
- Rds(on) [ mohm] at Vgs=10V（TYP)
- 2.4
- Rds(on) [ mohm] at Vgs=10V（MAX)
- 2.7
- Qg [nC] at 10V Typ
- 131
- Qgs [nC] Typ
- 50
- Qgd [nC] Typ
- 24
Overview & applications
Product positioning and recommended use cases.
MOSFET N-CH 250V 110A 2.4 TOLT
MOT1127T4 is a power N-channel MOSFET in TOLT, rated at 110 V and 250 A. Low on-resistance and fast switching help reduce losses in high-current, high-density power designs.
