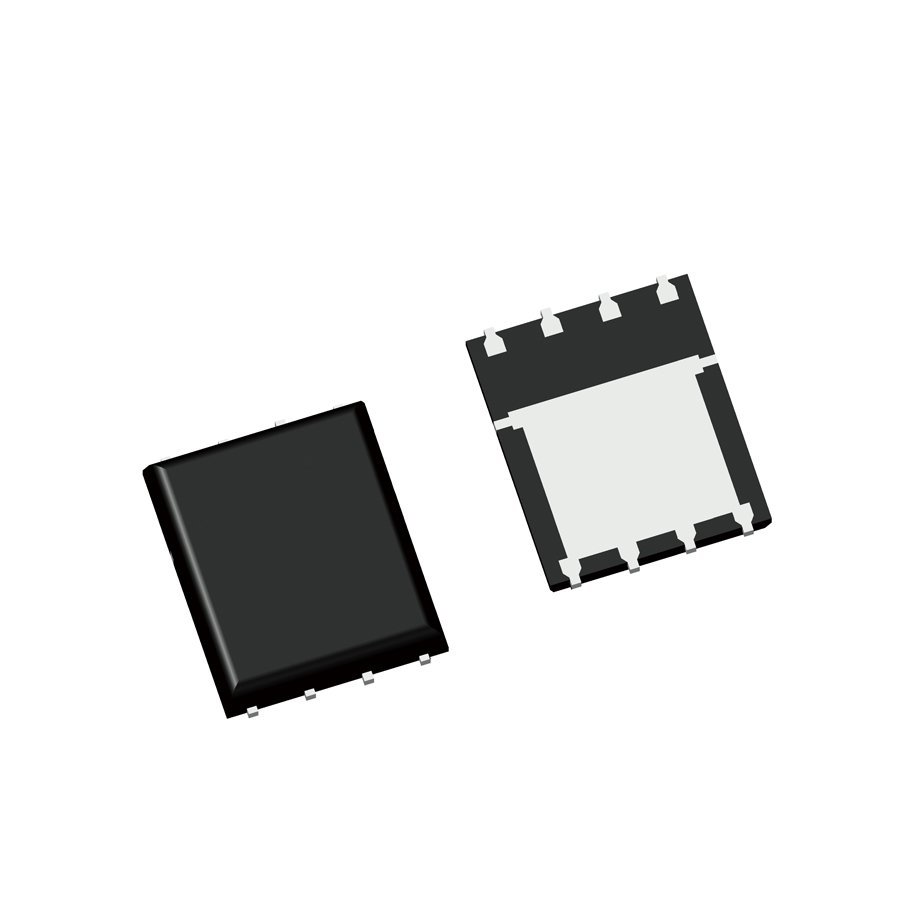

MOT1142HG
Status：
Package Type：
Category：
Item Description：
Datasheet：
Product Attributes
| Category | Medium/Low Trench SGT MOS |
| Supplier Device Package | PDFN5*6 |
| BVDSS | 100 |
| ID[A](25℃) | 125 |
| VGS(th)[V](max) | 4 |
| Rds(on) [ mohm] at Vgs=10V（TYP) | 4.3 |
| Rds(on) [ mohm] at Vgs=10V（MAX) | 4.9 |
| Rds(on) [ mohm] at Vgs=4.5V（TYP) | |
| Rds(on) [ mohm] at Vgs=4.5V（MAX) | |
| Rds(on) [ mohm] at Vgs=2.5V（TYP) | |
| Rds(on) [ mohm] at Vgs=2.5V（MAX) | |
| Qg [nC] at 10V Typ | 93 |
| Qgs [nC] Typ | 21 |
| Cargo Status | Active |
| Cargo Status | Active |
| Qgd [nC] Typ | 27 |
| Configuration | N |
| Package Type | Tape & Reel (TR) |
| Technology | MOSFET (Metal Oxide) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 4.9mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 93 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4600 pF @ 20 V |
| Power Dissipation (Max)(W) | 150 |
Product Description
MOT1142HG is a low-voltage N-Channel Mosfet with VDS at 60V and ID at 155A. The MOSFET has many benefits such as large ID current, large package size, advanced SGT technology, low RDS(on), low Qg(nC) and cost-effective. It is widely used for DC power supply, UPS and so on.
Documents and Media
Datasheet
Product Application Areas
It is widely used in various application fields such as PD, adapter, wireless charger, EV charger and power bank, etc.
