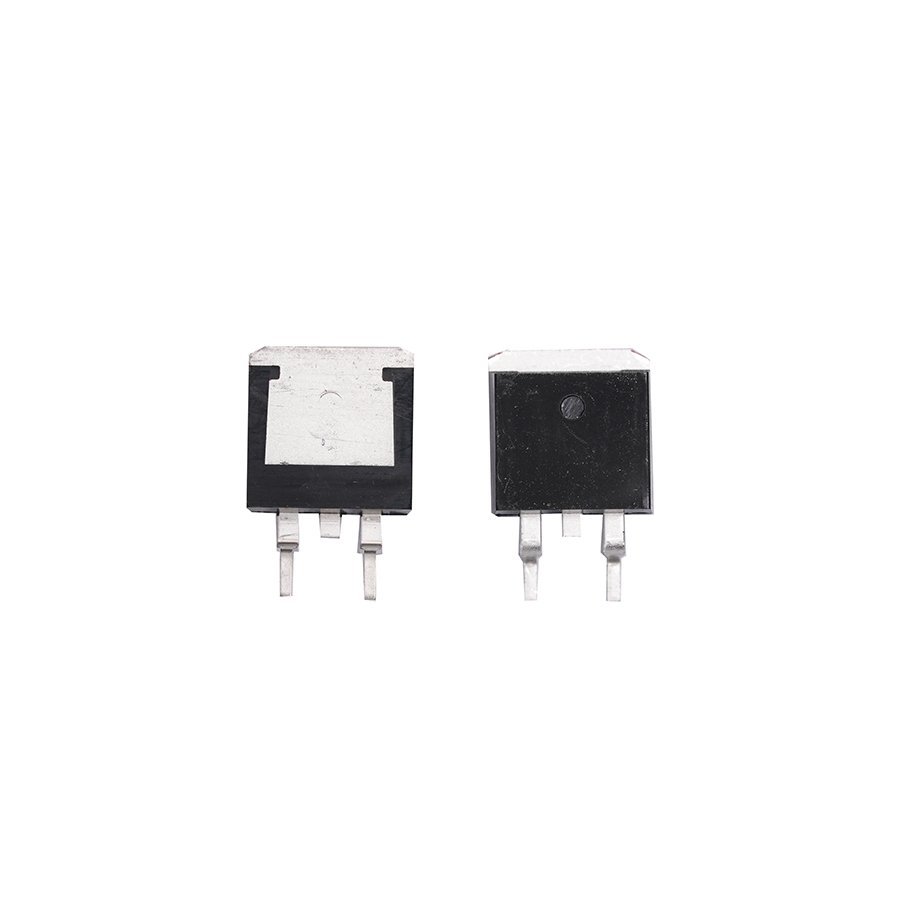

MOT180N10E
It is widely used in various application fields such as BMS, Motor drive, LED Lighting, Adapter, TV power supply and PC power supply etc.
Product information
Specifications, documents and sourcing support for MOT180N10E.
Technical specifications
Parametric data for product selection and design review.
- Cargo Status
- Active
- Supplier Device Package
- TO-263
- BVDSS
- 100
- ID[A](25℃)
- 180
- VGS(th)[V](max)
- 4
- Rds(on) [ mohm] at Vgs=10V（TYP)
- 3
- Rds(on) [ mohm] at Vgs=10V（MAX)
- 4
- Package
- Tape & Reel (TR)
- Mounting Type
- Through Hole
- Vgs (Max)
- ±20V
MOT180N10E
Review electrical characteristics, package drawings and test conditions.
Overview & applications
Product positioning and recommended use cases.
MOSFET N 180V 100A 3 TO-263
MOT180N10E is a middle-voltage with high-power N- channel Mosfet with VDS at 100V and ID at 180A. The MOSFET is with low RDS(on), large ID current, large package size and low Qg(nC), and cost-effective. It is mainly used for high-power DC power supplies, high-power load switch,etc.
Cross reference
Common market parts that may be evaluated against this MOT device.
| Manufacturer | Market part number | MOT part number |
|---|---|---|
| STMicroelectronics | STB100NF20 | MOT180N10E |
| Vishay（原IR） | IRFB4110S | MOT180N10E |
| 扬杰科技（YJ） | YJE180N10E | MOT180N10E |
| 华润微（CRMC） | CRMC180N10E | MOT180N10E |
Cross references are a starting point for evaluation. Confirm electrical and package compatibility in the datasheets before design-in.
