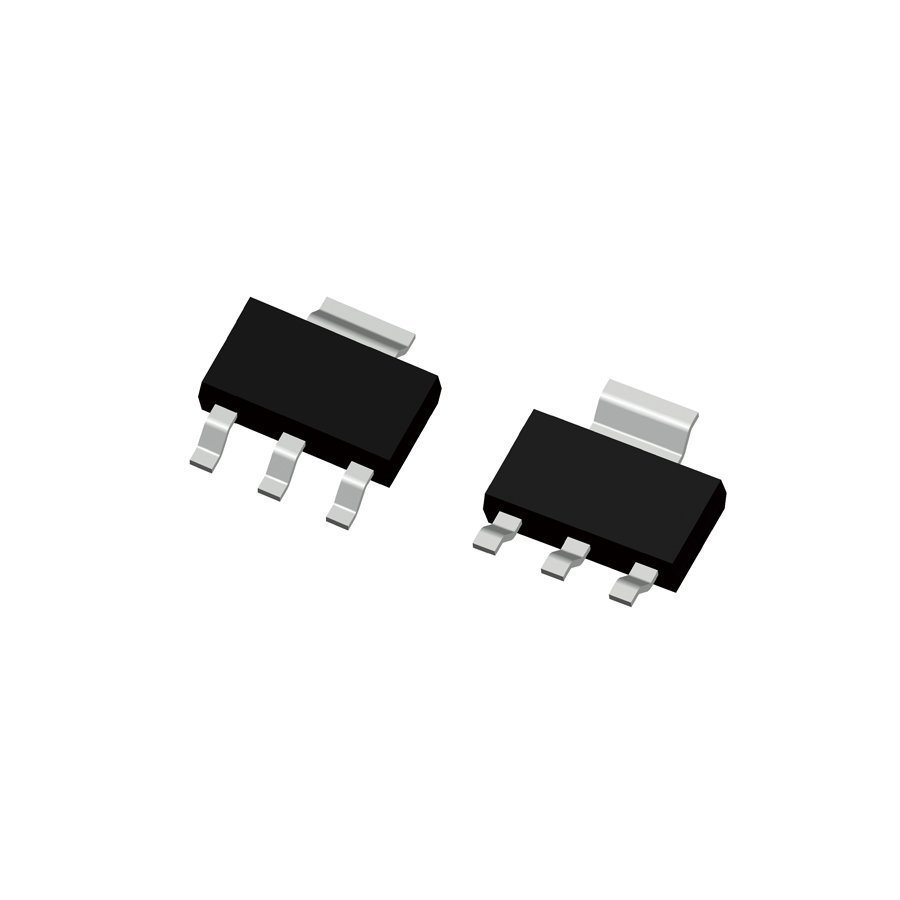

MOT2327B2
Suitable for load switching, portable devices, DC/DC converters, LED drivers and compact power management.
Product information
Specifications, documents and sourcing support for MOT2327B2.
Technical specifications
Parametric data for product selection and design review.
- Cargo Status
- Active
- Supplier Device Package
- SOT-23
- VDss[V](min)
- -15
- ID[A](25℃)
- -7.5
- VGS(th)[V](max)
- -1.5
- Rds(on) [ mohm] at Vgs=4.5V（TYP)
- 24
- Rds(on) [ mohm] at Vgs=4.5V（MAX)
- 34
- Rds(on) [ mohm] at Vgs=2.5V（TYP)
- 33
- Rds(on) [ mohm] at Vgs=2.5V（MAX)
- 45
- Qg [nC] at 10V Typ
- 8.8
- Qgs [nC] Typ
- 1.4
- Qgd [nC] Typ
- 1.9
- Configuration
- Single_P
MOT2327B2 Datasheet
Review electrical characteristics, package drawings and test conditions.
Overview & applications
Product positioning and recommended use cases.
MOSFET -15V -7.5A -1.5V SOT-23
MOT2327B2 is a P-channel MOSFET in SOT-23, rated at 15 V and 7.5 A. Low on-resistance and gate charge enable efficient switching in compact, battery-powered and DC/DC circuits.
Cross reference
Common market parts that may be evaluated against this MOT device.
| Manufacturer | Market part number | MOT part number |
|---|---|---|
| 骊微电子 | LY2327 | MOT2327B2 |
| 森利威尔 | SL2327 | MOT2327B2 |
| 芯鼎盛 | TX2327 | MOT2327B2 |
| Nexperia | PMV6PEAR | MOT2327B2 |
| onsemi（原Fairchild） | FDN342P | MOT2327B2 |
| Vishay | SI3460DV | MOT2327B2 |
| Alpha&Omega (AOS) | AO3407 | MOT2327B2 |
| Infineon（原IR） | IRLML5103TRPBF | MOT2327B2 |
| ROHM | RQ3E025ATTCR | MOT2327B2 |
| 扬杰科技（YJ） | YJB8P3B2 | MOT2327B2 |
| 华润微（CRMC） | CRMC2327B2 | MOT2327B2 |
| 长电科技（JCET） | JCET2327B2 | MOT2327B2 |
Cross references are a starting point for evaluation. Confirm electrical and package compatibility in the datasheets before design-in.
