MOT3145G
Suitable for load switching, PWM control, BMS, motor drives and efficient DC power management.
Product information
Specifications, documents and sourcing support for MOT3145G.
Technical specifications
Parametric data for product selection and design review.
- Cargo Status
- Active

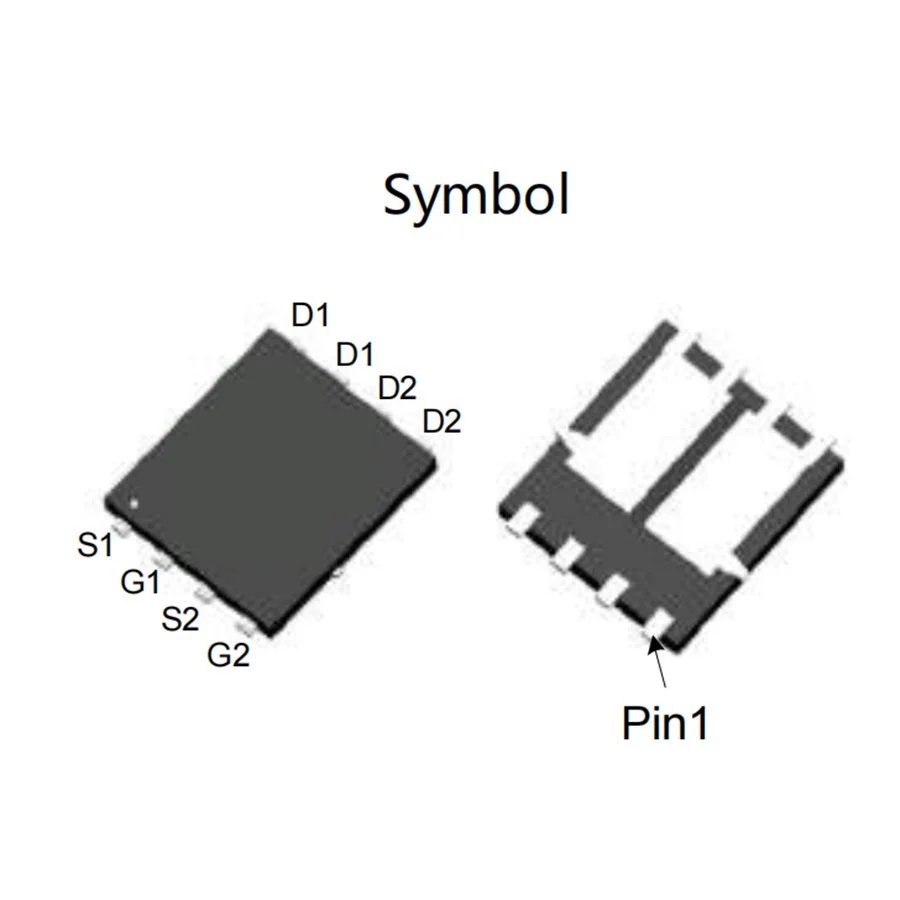

- Supplier Device Package
- PDFN5*6
- BVDSS
- 30
- ID[A](25℃)
- 100
- VGS(th)[V](max)
- 2.5
- Rds(on) [ mohm] at Vgs=10V（TYP)
- 3.8
- Rds(on) [ mohm] at Vgs=10V（MAX)
- 4.5
- Package
- Tape & Reel (TR)
- Mounting Type
- Surface Mount
- Vgs (Max)
- ±20V
MOT3145G
Review electrical characteristics, package drawings and test conditions.
Overview & applications
Product positioning and recommended use cases.
MOSFET N 100V 30A 3.8 PDFN5*6
MOT3145G is an N-channel trench MOSFET in PDFN5*6, rated at 30 V and 100 A. Low on-resistance and gate charge support efficient switching in motor-control, battery and power-management circuits.
Cross reference
Common market parts that may be evaluated against this MOT device.
| Manufacturer | Market part number | MOT part number |
|---|---|---|
| Alpha&Omega (AOS) | AON7480 | MOT3145G |
| onsemi | NVMFS5C467NWFT1G | MOT3145G |
| Nexperia | PSMN3R8-100YLDX | MOT3145G |
| 扬杰科技（YJ） | YJG100N03G | MOT3145G |
| 华润微（CRMC） | CRMC100N03G | MOT3145G |
| 东海半导体（WXDH） | WNSC10N3BGN | MOT3145G |
Cross references are a starting point for evaluation. Confirm electrical and package compatibility in the datasheets before design-in.
