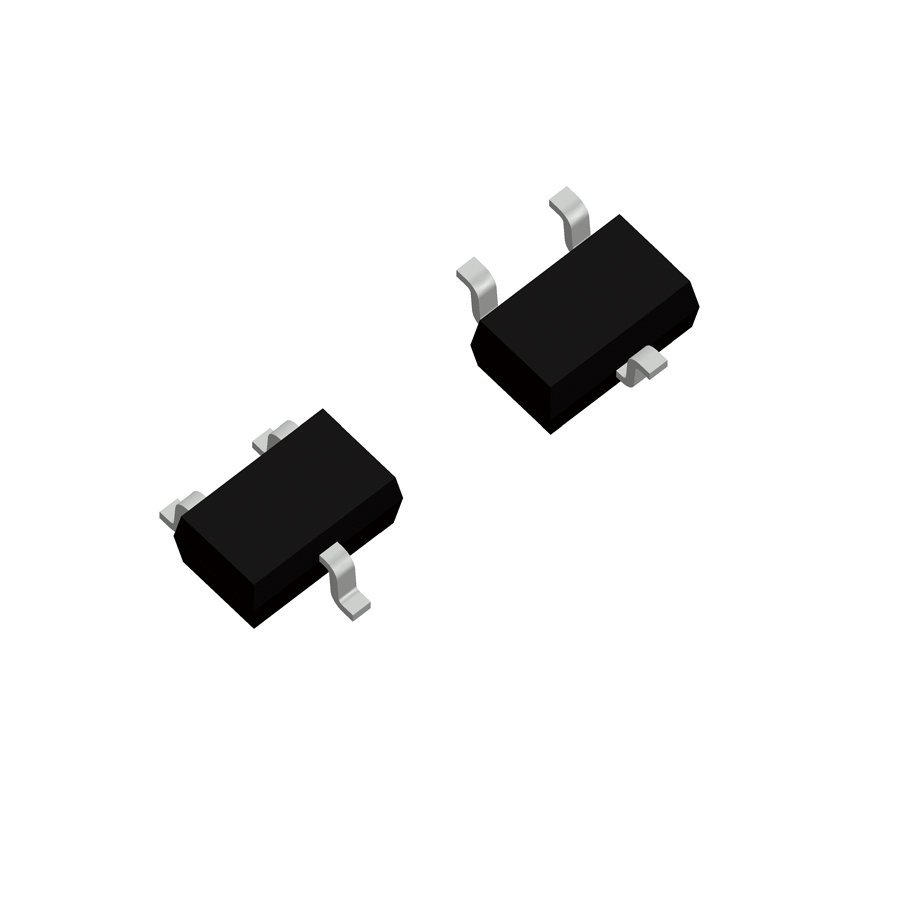

S9012W
It is widely used in various switching power supplies, chargers, adapters, smart phones, tablet computers, smart sensors, car radios, car anti-theft systems and other equipment.
Product information
Specifications, documents and sourcing support for S9012W.
Technical specifications
Parametric data for product selection and design review.
- Cargo Status
- Active
- Supplier Device Package
- SOT-323
- IC(mA)
- -500
- PC(mW)
- 200
- BVCBO(V)
- -40
- BVCEO(V)
- -25
- BVEB(V)
- -5
Overview & applications
Product positioning and recommended use cases.
TRANS 200mW -500mA -25V SOT-323
S9012W has the characteristics of high current gain, low power consumption and small size, and is widely used in signal processing circuits such as audio amplification and low power switch control.
Cross reference
Common market parts that may be evaluated against this MOT device.
| Manufacturer | Market part number | MOT part number |
|---|---|---|
| onsemi | S9012W | S9012W |
| Nexperia | S9012W | S9012W |
| Diodes Inc. | S9012W | S9012W |
| ROHM | S9012W | S9012W |
| YAGEO（国巨） | S9012W | S9012W |
| 扬杰科技（YJ） | S9012W | S9012W |
| 华润微（CRMC） | S9012W | S9012W |
| 长电科技（JCET） | S9012W | S9012W |
| 中微半导体（ZMSC） | S9012W | S9012W |
| 苏州固锝（ARC） | S9012W | S9012W |
Cross references are a starting point for evaluation. Confirm electrical and package compatibility in the datasheets before design-in.
