MOT8156G
It is widely used in various application fields such as PD, adapter, wireless charger, EV charger and power bank, etc.
Product information
Specifications, documents and sourcing support for MOT8156G.
Technical specifications
Parametric data for product selection and design review.
- Cargo Status
- Active
- Supplier Device Package
- PDFN5*6
- BVDSS
- 100
- ID[A](25℃)
- 112
- VGS(th)[V](max)
- 4
- Rds(on) [ mohm] at Vgs=10V（TYP)
- 3.9
- Rds(on) [ mohm] at Vgs=10V（MAX)
- 5
- Package
- Tape & Reel (TR)
- Mounting Type
- Surface Mount
- Vgs (Max)
- ±20V
MOT8156G
Review electrical characteristics, package drawings and test conditions.
Overview & applications
Product positioning and recommended use cases.

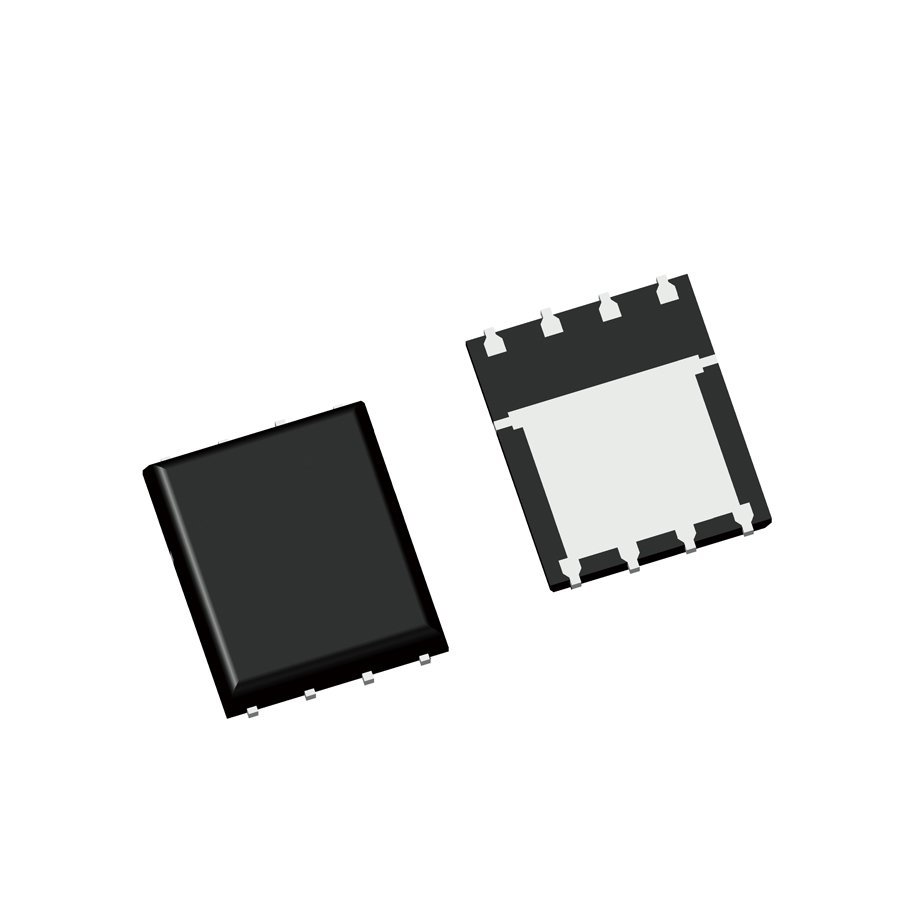

MOSFET N 112V 100A 3.9 PDFN5*6
MOT8156G is a middle-voltage and high-power N-Channel Mosfet. The MOSFET is with PDFN5x6 package, low RDS(on), large ID current, low Qg(nC) and cost-effective. It is widely used for DC power supply and motor drive.
Cross reference
Common market parts that may be evaluated against this MOT device.
| Manufacturer | Market part number | MOT part number |
|---|---|---|
| Alpha&Omega (AOS) | AON6990 | MOT8156G |
| onsemi | NVMFS6H800NWFT1G | MOT8156G |
| Nexperia | PSMN3R9-120YLDX | MOT8156G |
| 扬杰科技（YJ） | YJG112N03BG | MOT8156G |
| 华润微（CRMC） | CRMC112N03BG | MOT8156G |
Cross references are a starting point for evaluation. Confirm electrical and package compatibility in the datasheets before design-in.
